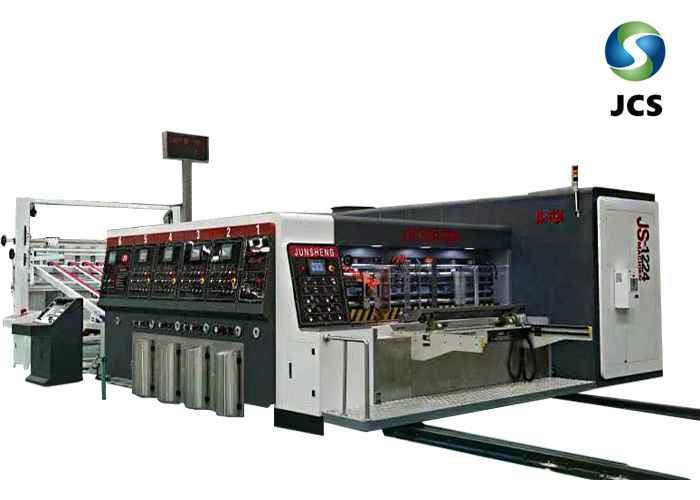

Flexo Printing Slotting Rotary Die-Cutting Machine ( Lead Edge Feeding )
Proformance of the main mechanisms
1. the whole machine's electrical appliances and computer software all adopt international well-known brands, with stable and reliable quality, human-machine interface, computer order management and easy operation.
2. the wall panels and important parts of the whole machine are aged and tempered to eliminate the internal stress of the metal. They are all made by high precision machining center and grinded by NC grinder.
3. the whole machine shaft and roll are made of high quality steel, grinding, high precision computer dynamic balance correction, and hard chromium plating on the surface.
4. the transmission gears of the whole machine are all made of 20CrMnTi alloy steel, carburized and quenched, with hardness HRC58-62. After grinding, the 6-level accuracy ensures the high accuracy of color matching for long-term use.
5. the whole machine transmission parts (shaft, teeth connection), are keyless connection (expansion sleeve), eliminating the connection gap, suitable for long-term high-speed operation of large torque.
6. the transmission bearings and important transmission components of the whole machine are all made up of three domestic brands: "Havaro", which is easy to maintain and has longer service life.
7. the lubrication system of the whole machine adopts spray-type automatic lubrication and is equipped with double oil level balance system.
8. the whole machine adjusts the pre-position function, feeding paper, printing, slotting, die cutting, automatic zero, automatic memory reset.
9. adjustment of working clearance of the whole machine, no wrench fast adjustment, fast and convenient adjustment.
10. the main engine adopts frequency conversion control, starting and running more smoothly, more energy-saving.
11. selection: Ceramic mesh roll, pusher. Scraper ink fixing system.
12. installed with ink shortage alarm device, real-time monitoring of the working status of the ink supply system.
Main specifications
| model | unit | 2400 | 2600 | 2600 | 2800 |
| roller diameter | mm | φ 305 | φ 405 | φ 480 | φ 530 |
| max. feeding size | mm | 900 * 2300 | 1200 * 2500 | 1400 * 2500 | 1600 * 2300 |
| max. printing area | mm | 900 * 2100 | 1200 * 2300 | 1400 * 2300 | 1600 * 2500 |
| feeding paper by partition | mm | 950 * 2300 | 1250 * 2500 | 1470 * 2500 | 1650 * 2700 |
| min. feeding size | mm | 260 * 650 | 350 * 650 | 400 * 650 | 500 * 650 |
| feeding thickness | mm | 2 - 11 | 2 - 11 | 2 - 11 | 2 - 11 |
| print plate thickness | mm | 7.2 | 7.2 | 7.2 | 7.2 |
| max. machinery speed | pcs / min | 220 | 200 | 180 | 150 |
| economic printing speed | pcs / min | 200 | 180 | 160 | 130 |
